RTL Design Practice Guide I - Sequential Logic - D Latch
2.1 Latch
PLEASE CLICK TO GET RTL DESIGN PRACTICE GUIDE - US
PLEASE CLICK TO GET RTL DESIGN PRACTICE GUIDE - IN2.1.1 D Latch
A
D latch is a type of digital circuit that is used to store a single bit of
information. It has only one input, which is called the ‘din’ input. When the
latch is enabled, the output of the latch is set to the value of the data input.
When the latch is disabled, the output of the latch remains in its previous
state.
A
D latch can be constructed using logic gates such as NAND gates or NOR gates.
In RTL (Register Transfer Level) design practice, the D latch can be designed
using Verilog or VHDL, and simulate to test its functionality.
D
latches are commonly used in digital systems for various purposes, such as
holding data, buffering signals, and synchronizing signals between different
parts of the system. They can also be combined with other digital circuits, such
as flip-flops and counters, to create more complex digital designs. Overall,
understanding the operation and implementation of D latches is an important
part of RTL design practice.
PLEASE CLICK TO GET RTL DESIGN PRACTICE GUIDE - US
PLEASE CLICK TO GET RTL DESIGN PRACTICE GUIDE - IN
2.1.2 Block Diagram:
A
D latch has a control input called enable ‘en’, when the enable input is high,
the latch is transparent, meaning that the output ‘qout’ will follow the input ‘din’.
When the enable input is low, the latch is opaque, meaning that the output ‘qout’
will hold its previous state.
Figure
2.1 – Shows the block diagram of a simple latch digital design circuit without
a reset functionality:
Figure
2.1 – D Latch block diagram
Figure
2.1 – Shows the block diagram of a simple latch digital design circuit with a reset
functionality:
Figure
2.2 – D Latch with reset block diagram
PLEASE CLICK TO GET RTL DESIGN PRACTICE GUIDE - IN
2.1.3 RTL Schematic:
The
RTL schematic of a D latch shows the behaviour of the circuit at the
register-transfer level, while describes the flow of data between register and
functional units. In this schematic, the D latch is composed of two NAND gates
or two NOR gates (S and R), with their output cross-coupled to create a
feedback loop. The input D represents the data to be stored, while the output Q
represents the stored value.
The
’G’ input is an enable signal that determines whether the latch is transparent
(G = 1) or opaque (G = 0). When G = 1, the latch is transparent, meaning that
the output Q will follow the input D. When EN = 0, the latch is opaque, meaning
that the output Q will hold its previous state.
Figure
2.3 – shows the RTL schematic of a D latch digital circuit without a reset
functionality:
Figure
2.3 – D latch RTL schematic without Reset
Figure 2.4 -shows the RTL schematic of a D latch
digital circuit with a reset functionality:
Figure
2.4 – D latch RTL schematic with Reset
Overall,
the RTL schematic of a D latch shows how the circuit operates at a higher level
of abstraction, focusing on the flow of data and control signals between registers
and functional units.
PLEASE CLICK TO GET RTL DESIGN PRACTICE GUIDE - US
PLEASE CLICK TO GET RTL DESIGN PRACTICE GUIDE - IN
2.1.4 RTL Synthesis:
RTL
synthesis is the process of automatically translating a high-level RTL description
into a gate-level netlist using synthesis tools. The synthesis tools map the
RTL description of a circuit into a set of gates that can be implemented using
standard cell libraries. The goal of RTL synthesis is to optimize the netlist
area, timing, and power, while preserving the functionality of the original RTL
design.
A
D-latch can be implemented in hardware using logic gates, such as NAND or NOR
gates, but when synthesizing the RTL code for a latch digital design circuit,
Vivado uses LUTs to implement the logic function. The LUTs are configurable
memory elements that can store the truth table of a logic function.
Figure
2.5- shows the synthesis implementation of a D latch digital design circuit without
a reset functionality, generate using Vivado synthesis tool:
Figure
2.5 – D latch synthesis implementation without Reset

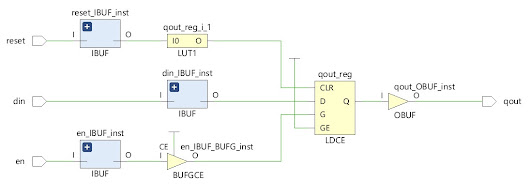

Figure
2.6- shows the synthesis implementation of a D latch digital design circuit
with a reset functionality, generate using Vivado synthesis tool:
Figure
2.6 – D latch synthesis implementation with Reset
Overall,
the Vivado Synthesis Schematic with LUT for a D-latch provides a visual
representation of how the RTL code for a latch digital design circuit is synthesized
into a netlist of logic gates, specifically LUTs, which are used to implement
the logic function of the D-latch in hardware.
PLEASE CLICK TO GET RTL DESIGN PRACTICE GUIDE - US
PLEASE CLICK TO GET RTL DESIGN PRACTICE GUIDE - IN
2.1.5 FPGA Implementation:
FPGA
(Field-Programmable Gate Array) implementation is the process of programming an
FPGA device to create a digital circuit that performs a specific function. FPGA
devices are integrated circuits that can be programmed and reprogrammed to
perform a wide range of digital functions, making them ideal for variety of
applications, including digital signal processing, image and video processing,
and machine learning.
Figure
2.7- shows the implementation flow of a FPGA design
Figure
2.7 – D latch implementation flow diagram
The following is the D latch implementation without
reset functionality:
Reference Device: xcau15p-ffvb676-2-e
LUT -
0
FF - 0
BRAM -
0
URAM - 0
DSP -
0
IO - 3
GT
- 0
BUFG -
1
MMCM -
0
PLL - 0
PCIe -
0
FPGA
Resource for a D latch without Reset
The following is the D latch implementation with reset
functionality:
Reference Device: xcau15p-ffvb676-2-e
LUT -
1
FF - 0
BRAM -
0
URAM - 0
DSP -
0
IO - 4
GT
- 0
BUFG -
1
MMCM -
0
PLL - 0
PCIe -
0
FPGA Resource for a D latch with Reset
PLEASE CLICK TO GET RTL DESIGN PRACTICE GUIDE - US
PLEASE CLICK TO GET RTL DESIGN PRACTICE GUIDE - IN
2.1.6 Hardware Description Language:
2.1.6.1
System Verilog: Latch without Reset
The
following System Verilog code illustrate the implementation of a latch digital
design circuit without reset functionality:
module
dlatch_sv (
input logic din,
input logic en,
output logic qout
);
always_comb begin
if (en)
qout = din;
end
endmodule
This
code defines a module called ‘dlatch_sv’ that has three ports: an input ‘din’,
an input ‘en’, and an output ‘qout’. The module implements a D latch, which is
a digital circuit that stores a single bit of data.
The
‘always_comb’ block describes the behaviour of the module. It checks the value
of the ‘en’ input and and, if it is true, sets the output ‘qout’ to the value
of the input ‘din’. If ‘en’ is false, the output ‘qout’ will retain its
previous value.
Note
that this code assumes that ‘din’, ‘en’, and ‘qout’ are all single bits. If you
need to create a multi-bit latch, you’ll need to modify the code accordingly.
2.1.6.2 Verilog: Latch without Reset
The
following Verilog code illustrate the implementation of a simple latch digital
circuit without reset functionality:
module
dlatch (
input din,
input en,
output reg qout
);
always @ (en)
begin
if (en)
qout = din;
end
endmodule
This
code defines a module called ‘dlatch’ that has three ports: an input ‘din’, an
input ‘en’, and an output ‘qout’. The module implements a D latch, which is a
digital circuit that stores a single bit of data.
The
‘always @’ block describes the behaviour of the module. If triggers whenever
either the ‘en’ or ‘din’ input changes. If ‘en’ is true, the output ‘qout’ will
be set to the value of ‘din’. If ‘en’ is false, the output ‘qout’ will retain
its previous value.
2.1.6.3 System Verilog: Latch with Reset
The
following System Verilog code illustrate the implementation of a latch digital
design circuit with reset:
module
dlatch_reset_sv (
input logic din,
input logic en,
input logic reset,
output logic qout
);
always_comb begin
if (reset)
qout = 0;
else if (en)
qout = din;
end
endmodule
This
code defines a module called ‘dlatch_reset_sv’ that has four ports: an input ‘din’,
an input ‘en’, an input ‘reset’, and an output ‘qout’. The module implements a
D latch with a reset functionality, which is a digital circuit that stores a
single bit of data.
The
‘always_comb’ block describes the behaviour of the module. It checks the value of
the ‘reset’ input and, if it is true, sets the output ‘qout’ to 0, effectively resetting
it. If ‘reset’ is false, the block then checks the value of the ‘enable’ input,
and if it is true, sets the output ‘qout’ to the value of the input ‘din’. If
both ‘reset’ and ‘enable’ are false, the output ‘qout’ will retain its previous
value.
2.1.6.4 Verilog: Latch with Reset
The
following Verilog code illustrate the implementation of a simple latch digital
design with reset functionality:
module
dlatch_reset (
input din,
input en,
input reset,
output reg qout
);
always
@ (en or reset or din)
begin
if (!reset)
qout = 1'b0;
else if (en)
qout = din;
end
endmodule
This
code defines a module called ‘dlatch_reset’ that has four ports: an input ‘din’,
an input ‘en’, an input ‘reset’, and an output ‘qout’. The module implements a
D latch with a reset functionality, which is a digital circuit that stores a
single bit of data.
The
‘always @’ block describes the behaviour of the module. It triggers whenever
either the ‘en’, ‘din’, or ‘reset’ input changes. If ‘reset’ is true, the
output ‘qout’ will be set to 0. If the ‘en’ is true, the output ‘qout’ will be
set to the value of ‘din’. If both ‘reset’ and ‘en’ are false, the output ‘qout’
will retain its previous value.
2.1.7 Questions to ask design perspective
How can you prevent race conditions from occurring in
the latch digital circuit?
What are setup and hold time requirements for the
input and outputs of the latch, and how can you ensure they are met?
How can you minimize the power consumption of the
latch digital circuit?
What steps can you take to ensure proper signal integrity
in the latch digital circuit?
What timing constraints must be met in the latch
digital circuit, and how can you ensure they are met?
How can you ensure proper operation of a finite state
machine that uses the latch digital circuit as a building block?
2.1.8 Problem statements for RTL design
practice:
Implement a D latch with asynchronous reset
Implement a D latch with enable input
Implement a D latch with edge-triggered input
